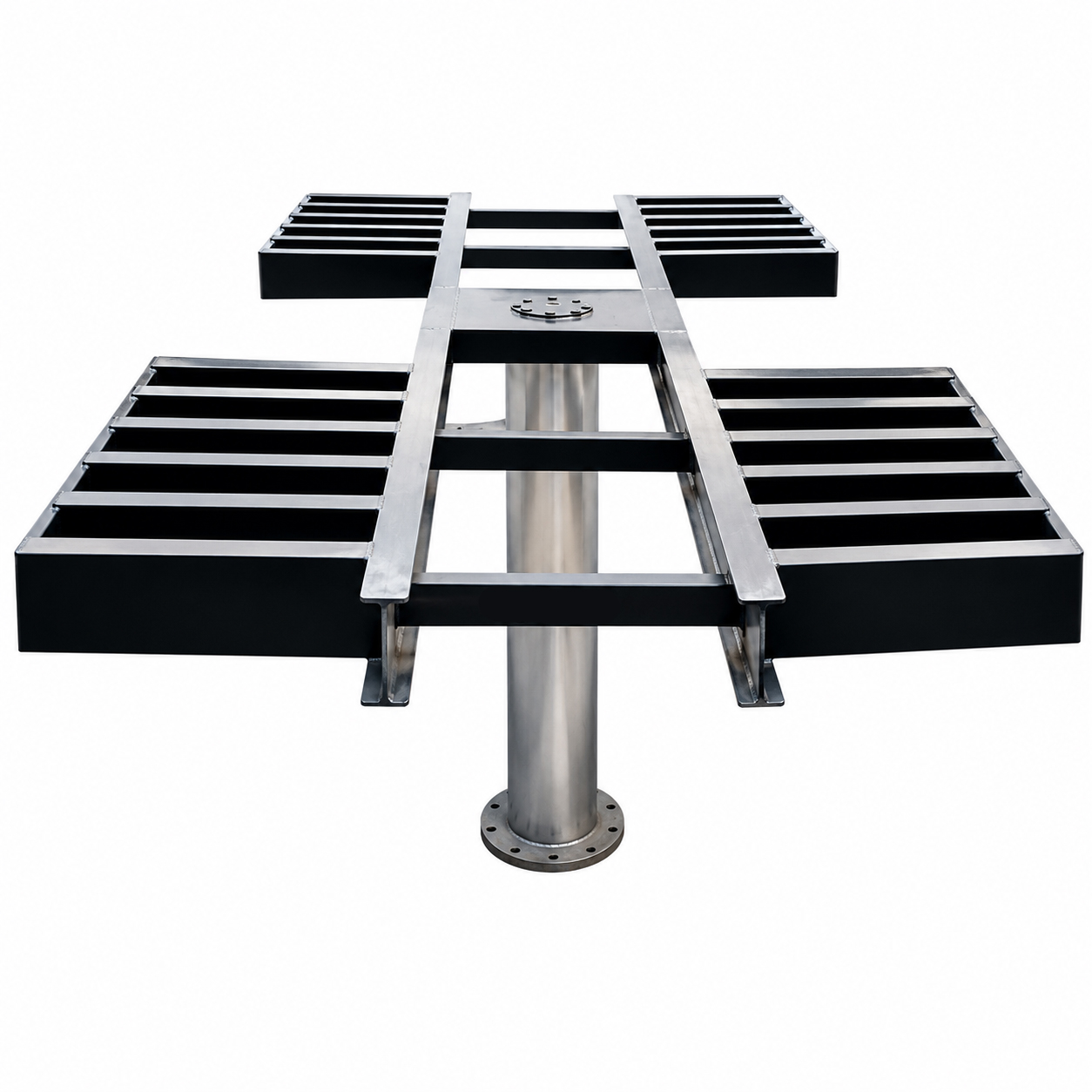

Single Post Tyre Rest Lift
₹ 150,000.00
Product Highlights
A Single Post Tyre Rest Lift is a hydraulic vehicle hoist designed for commercial car wash bays and detailing centres. It lifts the vehicle entirely by its wheels using platform tracks (or spider arms), which allows for quick drive-on positioning, completely unobstructed access to the vehicle’s undercarriage, and prevents water/debris from damaging exposed door sills.
In stock
Description
A Single Post Tyre Rest Lift is a hydraulic vehicle hoist designed for commercial car wash bays and detailing centres. It lifts the vehicle entirely by its wheels using platform tracks (or spider arms), which allows for quick drive-on positioning, completely unobstructed access to the vehicle’s undercarriage, and prevents water/debris from damaging exposed door sills.
Key Features & Specifications
1. Lifting Mechanism: Typically powered by a heavy-duty, single or twin-cylinder hydraulic system (oil pressure operating around 8 bar).
2. Design: Utilizes a single, central inground post and butterfly-style or fixed-track wheel platforms (usually up to 3600-4800 mm long) to support the vehicle’s tyres.
3. Capacity: Built to handle weights ranging from 2 to 4 tons (ideal for standard cars and heavy SUVs).
4. Height: Offers a maximum lift height of up to 6 feet (roughly 1.3 to 2 meters).
5. Safety & Durability: Manufactured with hard chrome-plated plungers to resist wear, accompanied by automatic locking mechanisms and wiper rings to keep out water and dust.
6.Usage: Built specifically for wet environments, the steel is heavily coated or made from mild steel to withstand heavy-duty wash chemicals and constant moisture.
Core Features & Operational Benefits
1. Instant Vehicle Drive-On: Features parallel runways with safety ramp-edges. Operators simply drive the vehicle onto the platform without needing to position separate lifting arms or adjust under-axle blocks manually.
2. Open Undercarriage Cleaning: Because the single central piston elevates the entire platform from the middle, the vehicle’s structural chassis elements, exhaust, floor panels, and axles are exposed for 360-degree high-pressure washing.
3. Superior Mechanical Stability: The wide platform distributes vehicle weight evenly across the four tyre footprint points. This layout keeps heavy SUVs, sedans, and light trucks safe from shifting or tilting during aggressive scrubbing.
4. Completely Waterproofed Plunger: The single vertical cylinder is housed in a water-sealed underground casing. High-grade specialized polyurethane seals block soapy runoff, sludge, and debris from contaminating the internal hydraulic circuit.
