Robotic Underbody Washer (18 Nozzle)
₹ 250,000.00
Product Highlights

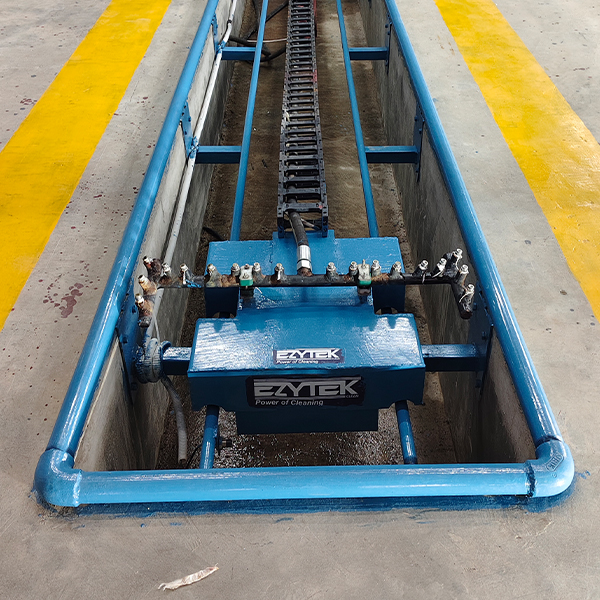

The 18-nozzle automatic underbody wash system is a high-pressure vehicle maintenance tool designed to clean a car’s undercarriage. Using nine oscillating or fixed nozzles on a moving robotic gantry, it blasts away dirt, mud, and road salt from front to back without requiring manual lifting.
In stock
in stock
Description
The 9-nozzle automatic underbody wash system is a high-pressure vehicle maintenance tool designed to clean a car’s undercarriage. Using nine oscillating or fixed nozzles on a moving robotic gantry, it blasts away dirt, mud, and road salt from front to back without requiring manual lifting.
Key Technical Specifications & Features
1. Nozzle System: Features oscillating high-pressure nozzles (commonly configured with 9 to 18 oscillating jets) mounted on a moving robotic gantry to cover the entire undercarriage from front to back.
2. Pressure & Power: Typically operates at 150 bar pressure, powered by a 10 HP / 7.5 kW (or 5.5 kW depending on the exact variant) high-pressure triple ceramic plunger pump.
3. Automation: Managed via a PLC (Programmable Logic Controller) and HMI touch panel, utilizing built-in sensors to automatically detect vehicle length and position.
4. Cycle Time: Cleans a standard vehicle underbody in approximately 1 to 1.5 minutes.
5. Build Material: Built with a hot-dip galvanized and powder-coated steel frame for heavy-duty corrosion resistance.
6. Price Range: Generally priced between ₹2,50,000 depending on the specific model, nozzle count, and brand variant
