140 Bar
₹ 28,500.00
Product Highlights
A 170 bar plunger pump is a high-pressure, positive displacement pump commonly used for industrial cleaning, water treatment, sewer jetting, and pressure boosting. Because “170 bar” specifies only the operating pressure, technical specifications vary depending on the frame size and volume flow rate (LPM/GPM).
In stock
in stock
Description
Description

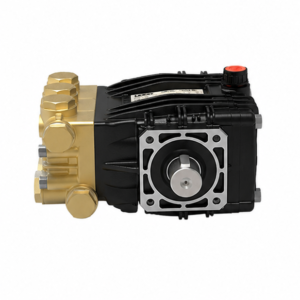

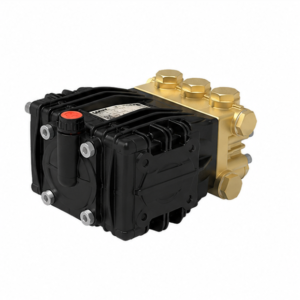

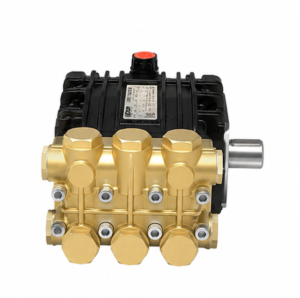

A 140 bar plunger pump (commonly structured as a triplex/three-cylinder reciprocating positive displacement pump) operates at a maximum pressure of 2,000 PSI and is primarily designed for heavy-duty industrial washing, pipe cleaning, and hydro-testing.
Technical Specifications
| Max Pressure | 140 bar / 2,000 PSI |
| Flow Rate | 14 LPM to 74.5 LPM |
| Motor Power | 2 HP to 15 HP |
| Rotational Speed | 1,420 RPM |
| Inlet Connection | 1/2″ BSPF |
| Discharge Connection | 3/8″ BSPF |
| Oil Type & Capacity | 0.4L |
| Max Liquid Temp | 50°C |
